Hydraulic Torque Wrench Power Packs

TorsionX Suramérica offers a full line of hydraulic pumps and associated equipment for sale, rent, or lease – as well as full-service solutions. Powerful and reliable when your job demands it, all hydraulic torque wrench pumps are 10,000 PSI, available in electric/hydraulic or pneumatic/hydraulic operation, and manufactured in the USA.

Features

  • Twin-Line Hydraulic Hoses
  • 10,000-PSI Gauge
  • Hydraulic Oil

Accessories

  • Hour Meter
  • Digital Gauge

View the Power Pack Brochure



IBT-115 Single-Port Power Pack*

Specifications

  • 110V/50 Hz**
  • 20 Amps
  • 1-1/8 Horsepower
  • 12,000 rpm
  • Maximum Oil Flow: 704 Cubic Inches per Minute
  • 2-Gallon Oil Reservoir
  • Overall Dimensions: 17.14" x 9.5" x 18.12"
  • Weight (without oil): 58 lb

 *available in 4-port
**available in 220V

Features

  • 2-Speed High Performance Pump
  • External Adjustable Pressure Regulator
  • Retract Internal Pressure Relief Valve for Tool Protection
  • 25' Remote Control Assembly

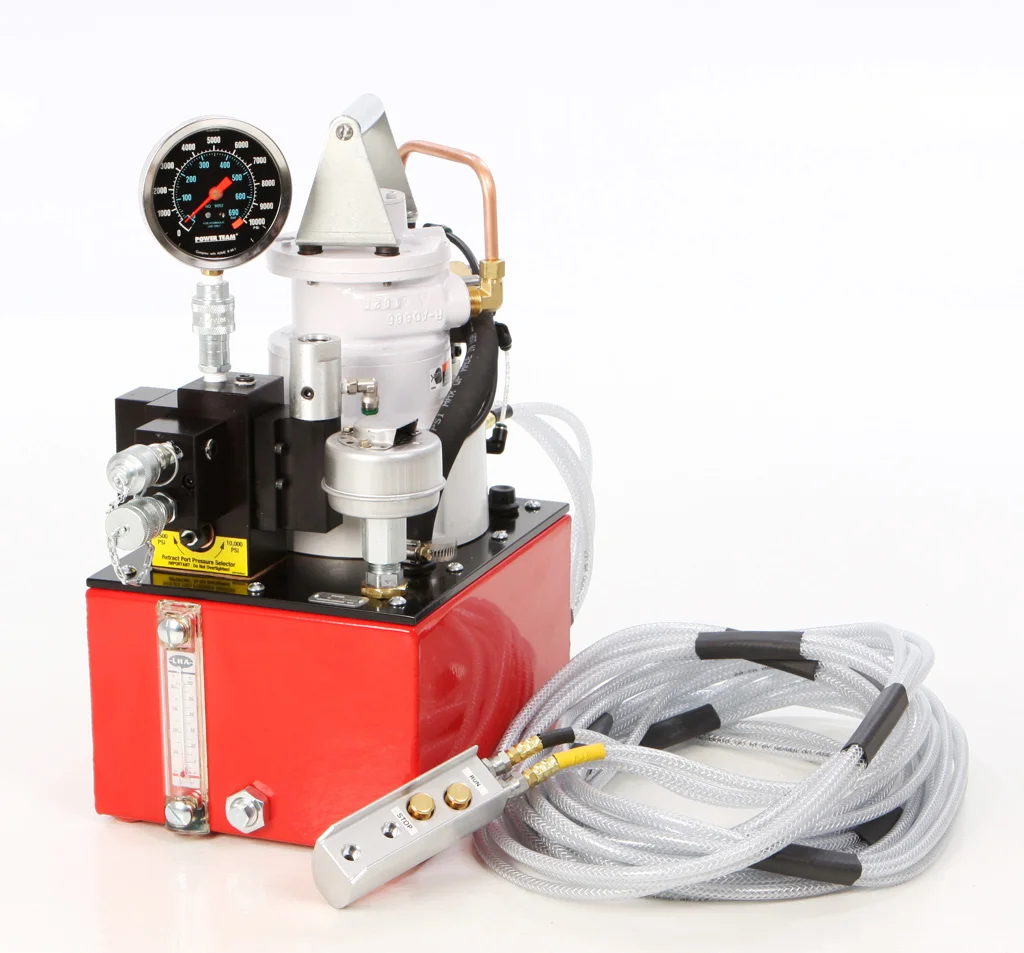

IBT-AIR Single-Port Power Pack*

Specifications

  • 3 Horsepower
  • 50 cfm @80 PSI
  • Maximum Oil Flow: 465 Cubic Inches per Minute
  • 2-Gallon Oil Reservoir
  • Overall Dimensions: 16.55" x 9.5" x 19.83"
  • Weight (without oil): 81 lb

*available in 4-port

Features

  • External Adjustable Pressure Regulator
  • Retract Internal Pressure Relief Valve for Tool Protection
  • 25' Remote Control Assembly

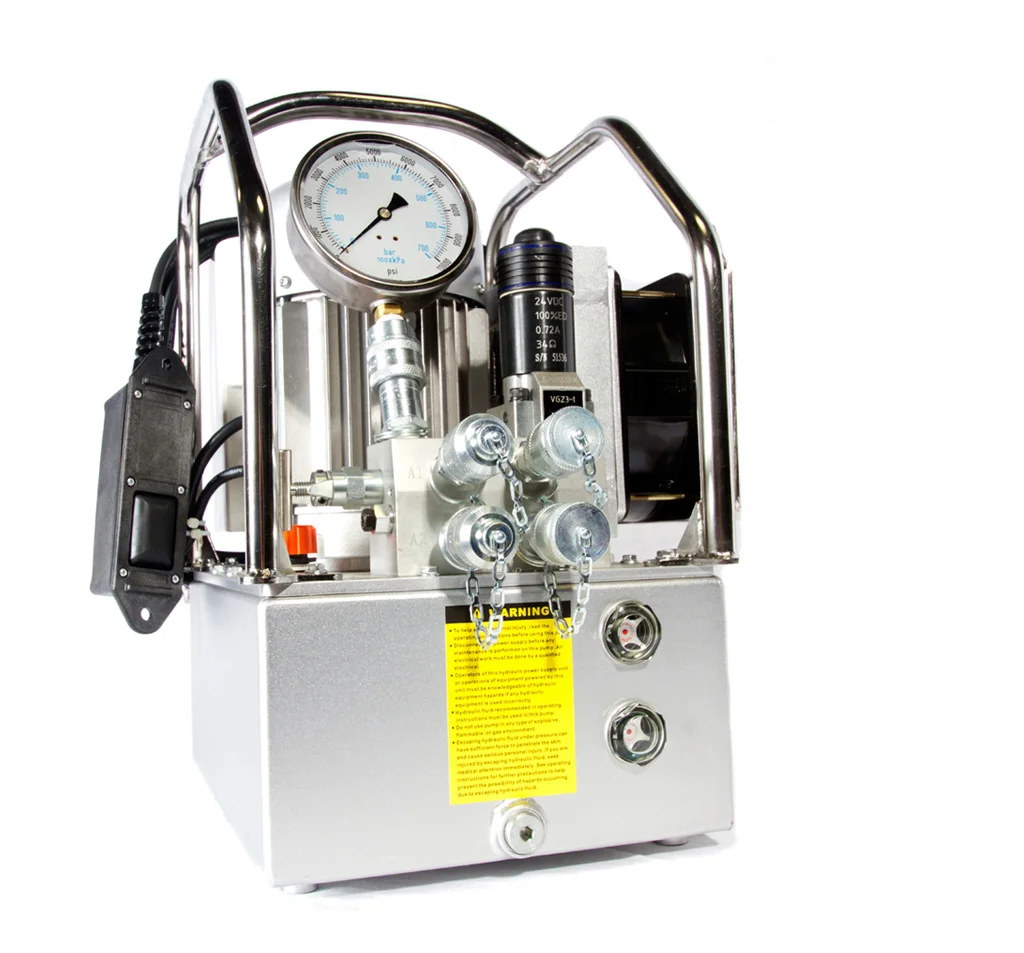

IBT-COOL Multi-Port Power Pack

Specifications

  • 115V/50 Hz*
  • 13.1 Amps
  • 1.5 Horsepower
  • 4,000 rpm
  • Maximum Oil Flow: 500 Cubic Inches per Minute
  • 1.5-Gallon Oil Reservoir
  • Overall Dimensions: 11.8" x 14.8" x 17.9"
  • Weight (without oil): 60 lb

*available in 220V

Features

  • Runs up to 2 Hydraulic Torque Wrenches Simultaneously
  • 3-Speed High Performance Pump
  • External Adjustable Pressure Regulator
  • Heavy Duty Roll Cage
  • Remote Control Assembly
  • State-of-the-art Central Cooling System
